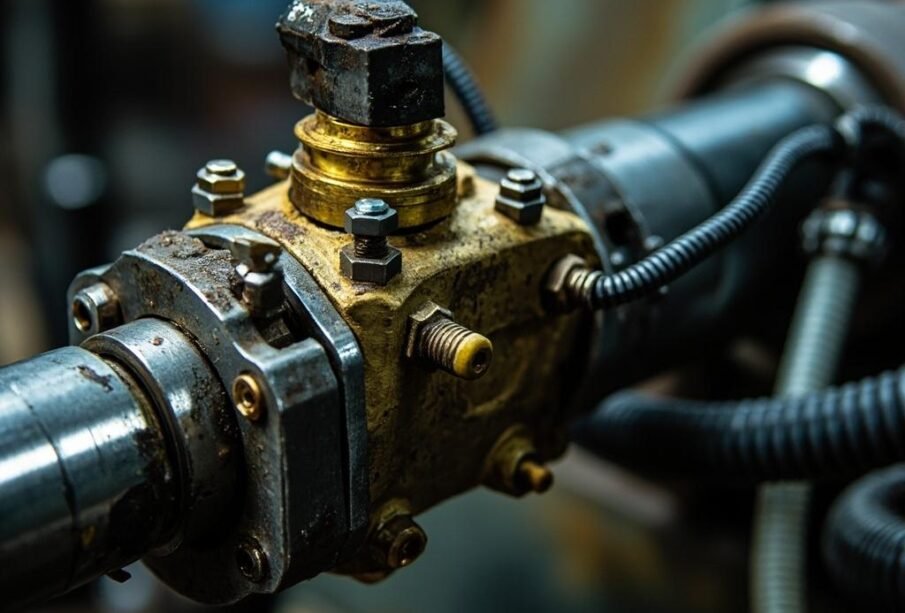

How to Select a Solenoid Valve for High-Cycle Pneumatic Systems
High-cycle pneumatic systems demand reliable, durable components that can withstand continuous operation without performance degradation. When selecting a solenoid valve for these demanding applications, engineers and system designers must carefully evaluate multiple parameters to ensure optimal performance, longevity, and cost-effectiveness. The right solenoid valve choice can mean the difference between a system that runs smoothly for years versus one that requires frequent maintenance and causes costly production downtime.
Understanding High-Cycle Pneumatic Applications
High-cycle pneumatic systems typically operate with valve actuation frequencies exceeding 100 cycles per minute, with some specialized applications reaching rates of 500 cycles per minute or more. These systems are commonly found in automated manufacturing lines, packaging equipment, material handling systems, and pneumatic tooling applications where rapid and repetitive actuation is essential for production efficiency.
Unlike standard pneumatic applications where valves may cycle only a few times per hour, high-cycle environments subject solenoid valves to extreme mechanical stress, thermal cycling, and wear. This makes material selection, design construction, and operational parameters critical considerations in the selection process.
Key Selection Criteria for High-Cycle Solenoid Valves
1. Response Time and Actuation Speed
Response time is perhaps the most critical parameter for high-cycle applications. This includes both the pull-in time (time to open the valve) and drop-out time (time to close). High-cycle systems require:
- Pull-in times under 25 milliseconds for most high-cycle applications
- Drop-out times under 20 milliseconds for reliable sealing
- Consistent response times regardless of cycling frequency
- Minimal variation between consecutive actuations
2. Duty Cycle Considerations
Solenoid valves are rated for specific duty cycles, typically expressed as a percentage of operating time. For high-cycle pneumatic systems, consider:
- Continuous duty (100%): Valves designed for uninterrupted operation
- Intermittent duty (50%): May overheat in continuous high-cycle use
- Momentary duty: Only suitable for low-frequency applications
💡 TIP: Always select solenoid valves rated for continuous duty (100%) when your application requires sustained high-frequency cycling. Overspecifying the duty cycle rating provides a safety margin that extends valve life and prevents unexpected failures.
3. Construction Materials and Durability
High-cycle operation accelerates wear on valve components. Material selection significantly impacts longevity:
| Component | Recommended Materials | Benefits |
|---|---|---|
| Valve Body | Brass, Stainless Steel, Aluminum | Corrosion resistance, strength |
| Seals/Seats | PTFE, FKM, NBR, Polyurethane | Wear resistance, temperature range |
| Plunger/Armature | Steel, Stellite, Ceramic | Magnetic efficiency, wear resistance |
| Springs | Stainless Steel, Music Wire | Fatigue resistance, corrosion resistance |
Types of Solenoid Valves for High-Cycle Applications
Direct-Acting vs. Pilot-Operated Valves
For high-cycle pneumatic systems, the choice between direct-acting and pilot-operated designs requires careful consideration:
| Valve Type | Best For | Response Time | Pressure Range |
|---|---|---|---|
| Direct-Acting | Very high cycle rates, low pressure | 5-15 ms | 0-150 PSI typically |
| Pilot-Operated | High cycle rates, higher pressure | 15-50 ms | Up to 500+ PSI |
| High-Speed/Langer | Extremely high frequency (500+ cpm) | 3-8 ms | 0-120 PSI |
Poppet vs. Slide Design
Poppet-type solenoid valves feature a sealing element that moves perpendicular to the flow path. They offer excellent sealing characteristics and are well-suited for high-cycle applications due to their simple design and minimal moving parts. Slide-type valves use a sliding spool mechanism and provide precise flow control but may experience more wear in extremely high-cycle operations.
Critical Technical Specifications
When evaluating solenoid valves for high-cycle pneumatic systems, pay close attention to these essential specifications:
- Operating Voltage: Common ratings include 24V DC, 110V AC, and 220V AC. Ensure voltage compatibility with your control system.
- Power Consumption: Lower wattage coils generate less heat, crucial for continuous operation. Look for energy-efficient designs.
- Port Size: Match to your system’s pipe diameter and flow requirements. Common sizes range from 1/8″ to 1/2″ NPT.
- Flow Coefficient (Cv): Indicates volumetric flow capacity. Higher Cv values mean less pressure drop across the valve.
- Operating Temperature Range: Ensure the valve can function in your environmental conditions, typically -10°C to 80°C for standard units.
- IP Rating: Ingress protection rating for dust and moisture resistance, especially important in industrial environments.
⚠️ WARNING: Never exceed the manufacturer’s specified maximum pressure and temperature ratings. Operating beyond these limits significantly increases the risk of valve failure, leakage, and potentially dangerous system ruptures. Always include appropriate safety factors in your calculations.
Performance Comparison for High-Cycle Applications
| Feature | Standard Valve | High-Cycle Valve | High-Speed Valve |
|---|---|---|---|
| Max Cycle Rate | 30-60 cpm | 100-300 cpm | 500+ cpm |
| Expected Life (Cycles) | 1-5 million | 10-50 million | 100+ million |
| Response Time | 25-50 ms | 10-25 ms | 3-10 ms |
| Heat Generation | Moderate | Controlled | Minimal |
| Cost Factor | 1x (baseline) | 2-3x | 5-10x |
Common Applications and Requirements
High-cycle solenoid valves serve diverse industrial applications, each with unique demands:
