Hydraulic vs. Pneumatic Systems: Which is Better for Industrial Automation?
In the rapidly evolving landscape of industrial automation, selecting the right power transmission system is crucial for optimizing equipment performance, reliability, and cost-efficiency. Two dominant technologies compete for attention in manufacturing facilities worldwide: hydraulic systems and pneumatic systems. While both serve the fundamental purpose of converting energy into controlled mechanical motion, their underlying principles, capabilities, and applications differ substantially. Understanding these differences is essential for engineers, plant managers, and automation specialists who aim to make informed decisions when designing or upgrading industrial machinery. This comprehensive guide examines the key characteristics, advantages, limitations, and ideal use cases for both hydraulic and pneumatic systems, providing you with the knowledge needed to choose the most appropriate solution for your specific industrial automation requirements.
Understanding Hydraulic Systems in Industrial Automation
Hydraulic systems utilize pressurized liquid, typically hydraulic oil, to transmit power and control motion in industrial applications. These systems operate on Pascal’s law, which states that pressure applied to a confined fluid is transmitted undiminished in all directions. The fundamental components of a hydraulic system include a reservoir, pump, valves, actuators, and connecting tubing or hoses.
In industrial automation contexts, hydraulic systems are prized for their exceptional power density—the ability to generate massive forces from relatively compact components. Modern hydraulic systems can achieve operating pressures ranging from 2,000 to 5,000 PSI (pounds per square inch), with some specialized applications reaching even higher pressures. This capability makes hydraulic technology the go-to choice for heavy-duty applications requiring substantial force generation.
Key Components of Hydraulic Systems
- Hydraulic Pumps: Convert mechanical energy into hydraulic energy by moving fluid through the system
- Hydraulic Cylinders: Linear actuators that produce force through the movement of pistons
- Hydraulic Motors: Rotary actuators that generate rotational motion and torque
- Control Valves: Regulate fluid flow direction, pressure, and flow rate
- Accumulator: Stores hydraulic energy for peak demand periods and system stabilization
- Hydraulic Oil: The working fluid that transmits power throughout the system
Understanding Pneumatic Systems in Industrial Automation
Pneumatic systems employ compressed air or other gases as the working medium to transmit power in industrial automation applications. Unlike hydraulic systems that use incompressible liquids, pneumatic systems rely on the compressible nature of gases, typically atmospheric air, to generate and control mechanical motion. This fundamental difference in working fluid properties leads to distinct performance characteristics and application suitability.
Pneumatic systems typically operate at much lower pressures than their hydraulic counterparts, generally ranging from 80 to 150 PSI. While this limits their maximum force output, pneumatic technology offers significant advantages in terms of simplicity, cleanliness, cost-effectiveness, and ease of maintenance. These characteristics have made pneumatics the preferred choice for countless automation applications across virtually every industry sector.
Essential Pneumatic System Components
- Air Compressor: Generates compressed air by reducing volume and increasing pressure

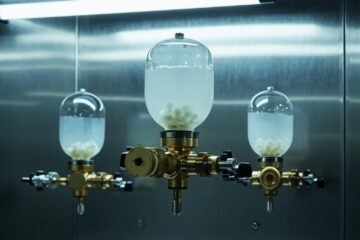

- Air Treatment Units: Filter, lubricate, and regulate air quality for system protection
- Pneumatic Valves: Control directional flow, pressure, and sequencing of compressed air
- Pneumatic Cylinders: Linear actuators utilizing air pressure to produce mechanical force
- Pneumatic Motors: Rotary actuators powered by compressed air expansion
- Tubing and Fittings: Distribute compressed air throughout the system
When evaluating hydraulic versus pneumatic systems for your application, always consider the full lifecycle costs including initial investment, maintenance requirements, energy efficiency, and potential downtime costs. A lower-cost pneumatic system may incur higher long-term operating expenses if it requires frequent replacement due to insufficient force capacity or cycle life for your specific application.
Comparative Analysis: Hydraulic vs. Pneumatic Systems
To facilitate informed decision-making, the following comprehensive comparison highlights the critical differences between hydraulic and pneumatic technologies across multiple performance and operational parameters:
| Parameter | Hydraulic Systems | Pneumatic Systems |
|---|---|---|
| Operating Pressure | 2,000 – 5,000+ PSI | 80 – 150 PSI |
| Power Density | Excellent (5-10x higher than pneumatics) | Good (limited by pressure) |
| Response Speed | Moderate (fluid inertia effects) | Fast (air compressibility advantage) |
| Control Precision | Very High (precise pressure/flow control) | Moderate (affected by air compressibility) |
| Energy Efficiency | Good (efficient fluid power transmission) | Lower (energy lost in compression) |
| Maintenance Complexity | Higher (fluid contamination concerns) | Lower (simpler system architecture) |
| Cleanliness | Moderate (oil leaks possible) | Excellent (no fluid leaks) |
| Initial Cost | Higher (complex components) | Lower (simpler technology) |
| Force Output | Extremely High | Moderate |
| Temperature Range | Limited (fluid viscosity concerns) | Wide (air properties more stable) |
Advantages of Hydraulic Systems
Hydraulic systems offer numerous compelling advantages that make them indispensable for specific industrial automation applications where their unique capabilities cannot be matched by pneumatic alternatives.
Superior Force Generation
The most significant advantage of hydraulic technology lies in its ability to generate tremendous force outputs from relatively compact components. Hydraulic cylinders can produce forces measured in hundreds of tons, making them essential for applications such as metal forming, heavy equipment operation, and large-scale material processing. This exceptional power density allows engineers to achieve required force outputs while minimizing the physical size and weight of actuation components.
Precise Motion Control
Hydraulic systems excel at providing precise position and velocity control, which is critical for automation applications requiring tight tolerances and consistent performance. Advanced hydraulic proportional and servo valves enable sophisticated closed-loop control strategies that can achieve positioning accuracies measured in fractions of millimeters. This precision makes hydraulics ideal for CNC machine tools, robotic systems, and automated assembly equipment where accuracy is paramount.
Smooth and Shock-Free Operation
The incompressible nature of hydraulic fluid enables smooth, continuous force transmission without the pulsation issues sometimes associated with pneumatic systems. Hydraulic actuators can provide constant force throughout their stroke and can be easily controlled to produce smooth acceleration and deceleration profiles. This characteristic is particularly valuable for applications involving delicate product handling, precision machining, or any process requiring vibration-free operation.
